Ankang B-160 copper and silver ion disinfection

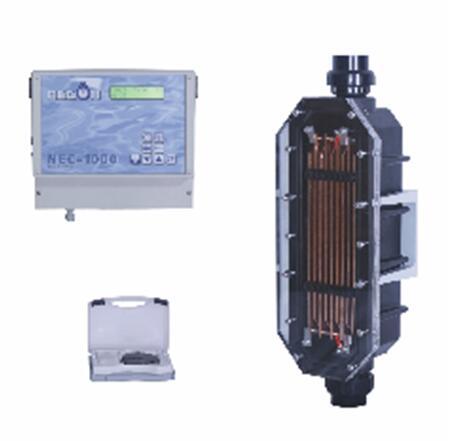

Introduction to the German Ankang Copper-Silver Ion Generator: This generator consists of a miniature electronic controller, a stainless steel casing, and copper-silver ion generating electrodes. The representative product—the copper-silver ion generator—works by having the miniature electronic controller output a low-voltage direct current when in operation. Two copper-silver metals serve as the cathode and anode, respectively. Under the action of the low-voltage direct current, the copper-silver metal at the anode will generate copper-silver ions; when water flows through the device, the copper-silver ions diffuse into the water under the action of the water flow, thereby purifying the water quality. The miniature electronic controller controls the amount of copper-silver ions generated by controlling the magnitude of the direct current; and it prevents uneven wear of the electrodes by periodically switching the polarity. When both electrodes are completely depleted, simply replace them with a new pair to continue using the device.

Working Principle: Copper and silver have bactericidal and disinfecting functions, which are extensively documented in ancient literature both domestically and internationally. Modern scientific research has found that the bactericidal function of copper and silver stems from the ease with which positively charged copper-silver ions combine with negatively charged bacteria, easily penetrating the cell walls of bacteria, binding to the intracellular genetic DNA and RNA, destroying bacterial enzymes and respiratory enzymes, leading to bacterial death and lysis. Currently, copper-silver ion technology has been widely used in developed countries such as the US and UK, and copper-silver ion disinfection technology has matured. Experiments have shown that the best results are obtained by combining 0.4 mg/L of copper ions and 0.04 mg/L of silver ions with a certain amount of other disinfectants, especially in experiments on drinking water, where the concentrations are below drinking water standards yet achieve good results. Therefore, this technology has been widely used in drinking water and circulating cooling water systems.

Features: 1. Sterilization, disinfection, algaecide; does not produce toxic byproducts, no secondary pollution; 2. Safe, non-toxic, colorless, odorless, and non-toxic side effects on the human body; 3. Unaffected by temperature, can maintain sterilization effect for a long time; 4. Easy installation, no need for specialized personnel management; 5. Better effect when used in conjunction with oxidizing disinfectants; 6. Stainless steel casing, beautiful appearance.

100% eliminates bacteria and algae in water quickly without adding any chemical agents, ozone, or ultraviolet light, disinfecting and flocculating, lasting effective, long-term protection, especially harmless to infants and young children. The German Ankang all-metal ion physical water purification method is an ideal choice for parent-child, private, and public swimming pool water treatment, a world's first, made in Germany! Choosing genuine German Ankang is your ideal choice, genuine Ankang copper-silver ion equipment allows you to worry-free water quality…Looking forward to cooperating with you. Baby swimming pool dedicated product, German Ankang copper-silver ion disinfection equipment (no need to add any chemical agents) lasting effective, no frequent water changes, will not cause any harm to the baby's skin.

Operating Voltage: 230/240V

Operating Power Frequency: 50/60Hz

Operating Power: 200W

Output Current: Maximum 15V DC

Water Conductivity: 500-2000uS

Maximum Allowable Water Pump Power: 1.1KW, protective device required for power exceeding this limit

Protection Level: IP54

Ambient Operating Temperature: ≤40℃

Control Panel: Plastic film buttons

Material: Resin ABS

Controller Net Weight: 1.5Kg, Dimensions: 300×260×120mm

Maximum Water Flow Rate: 30M³/h

Connecting Pipe: 2 inches/3 inches

Material: Plastic PU/Stainless Steel (optional)

Maximum Pressure: 3.5bar

Weight: 32Kg

Dimensions: 820×185×160mm

Number of Electrode Plates: 9

Maximum Applicable Pool Volume: 160m³

Keywords

Ankang B-160 copper and silver ion disinfection

Introduction to German Ankang Copper-Silver Ion Generator: The copper-silver ion generator consists of a miniature electronic controller, a stainless steel casing, and copper-silver ion generating electrodes. A representative product is the copper-silver ion generator. After the device is running, the miniature electronic controller outputs low-voltage direct current, with two pieces of copper-silver metal serving as the cathode and anode respectively. Under the action of low-voltage direct current, the copper-silver metal at the anode will generate copper-silver ions; when water flows through the device, the copper-silver ions diffuse into the water under the action of the water flow, thereby purifying the water quality. The miniature electronic controller controls the amount of copper-silver ions generated by controlling the magnitude of the direct current; and sets a time control polarity reversal to prevent uneven wear of the electrodes. When both electrodes are completely depleted, a new pair of electrodes must be replaced to continue use.
