Blue Dolphin Sewage Lift Pump Backwash Vortex Type

Wastewater lifting equipment is a highly integrated wastewater discharge system, consisting of a wastewater pump, sump tank, pipes, valves, level gauge, and electrical control devices. It collects wastewater discharged from sewage pipes and sanitary facilities below the sewer level or far from the municipal sewage network through a sump tank, and pumps the wastewater into the city's sewage system. The tank has multiple interface options, including vertical and horizontal interfaces, for connecting water pumps, wastewater inlets, ventilation pipes, and parallel sump tanks.

　　With the booming development of the social economy, the construction of various underground buildings is increasing, but the supporting wastewater lifting facilities are relatively lagging. At present, the traditional method of excavating underground sewage pools is commonly used, which inevitably leads to problems such as odor overflow and breeding of mosquitoes and bacteria, which is inconsistent with the national goal of building an environmentally friendly society.

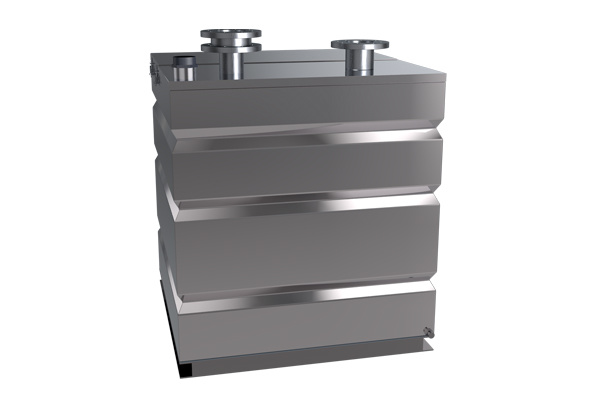

The stainless steel wastewater lifter is equipped with a vortex swirl device and adopts a built-in structural design. All components are installed in the tank, saving space.

Product Features

　　● Made of SUS304 stainless steel, it is corrosion-resistant, pressure-resistant, structurally strong, and durable.

　　● The pump uses a large-passage impeller, greatly improving the ability to pass sewage; the new internal circulation design prevents the motor from burning out even when idling without water.

　　● The reasonable vortex swirl structure ensures that wastewater can smoothly enter the tank, and the sewage is intercepted in the backwashing chamber. As the pump drains water, the sewage is discharged into the sewage network with the water.

　　● The tank has a self-cleaning flushing function. When the pump is running, it self-cleans the tank while draining, and flushes the bottom of the pump, causing the sludge and sediment at the bottom of the tank to form a vortex and quickly enter the pump to be discharged outside the tank.

　　● A safe water inlet device ensures that wastewater can enter the tank even if the inlet branch pipe is blocked, preventing overflow due to pipe blockage.

　　● An intelligent controller provides comprehensive protection for the wastewater lifting system.

　　● The liquid level controller uses a dual-level float control system for more precise liquid level control.

　　● Tank size can be customized according to the customer's actual installation conditions.

Performance Parameters

Serial Number	Model	Flow Rate	Head	Power	Capacity	Number of Pumps	Effective Capacity	External Dimensions
Serial Number	Model	m³/h	m	kw	L	Units	L	LengthWidthHeight
1	2W/HD/B-20-10-1.5-500	20	10	1.5	500	2	450	80010001060
2	2W/ HD /B-15-15-1.5-500	15	15	1.5	500	2	450	80010001060
3	2W/HD/B-30-12-2.2-500	30	12	2.2	500	2	450	80010001060
4	2W/ HD /B-22-15-2.2-500	22	15	2.2	500	2	450	80010001060
5	2W/HD/B-15-20-2.2-500	15	20	2.2	500	2	450	80010001060
6	2W HD /B-37-13-3-500	37	13	3	500	2	450	80010001060
7	2W/HD/B-40-15-4-500	40	15	4	500	2	450	80010001060
8	2W/ HD /B-20-10-1.5-1000	20	10	1.5	1000	2	900	100012101170
9	2W/HD/B-15-15-1.5-1000	15	15	1.5	1000	2	900	100012101170
10	2W/ HD /B-30-12-2.2-1000	30	12	2.2	1000	2	900	100012101170
11	2W/HD/B-22-15-2.2-1000	22	15	2.2	1000	2	900	100012101170
12	2W/ HD /B-15-20-2.2-1000	15	20	2.2	1000	2	900	100012101170
13	2W/HD/B-37-13-3-1000	37	13	3	1000	2	900	100012101170
14	2W/ HD /B-40-15-4-1000	40	15	4	1000	2	900	100012101170

Excellent Service

　　The company not only provides customers with various high-quality advanced equipment, but also ensures the continuous reliability of users during the use process with comprehensive and high-quality services. Based on the ISO9001 quality system standard, the company has established a complete service system to provide customers with perfect pre-sales, in-sales, and after-sales services.

　　Pre-sales Service

　　1. On-site investigation at the construction site to provide selection suggestions.

　　2. Based on customer requirements, understand our products in detail and help customers purchase the most cost-effective equipment.

　　3. Provide comprehensive drawings and scheme support to facilitate customer decision-making.

　　In-sales Service

　　1. Installation: Our company provides a complete set of equipment, and the company will send a professional construction team to the site for positioning and installation, and cooperate with the safe connection of equipment and systems.

　　2. Debugging and operation: During the debugging period, our company will send professional service personnel to the site to ensure the safe operation of the equipment.

　　3. Training: Our company provides free training to ensure the normal operation and maintenance of the equipment.

　　After-sales Service

　　1. Our company is responsible for the after-sales service of all products sold.

　　2. During the warranty period, the company provides free repair services.

　　3. The company will provide lifelong tracking, maintenance, and repair services for each user.

　　4. A 24-hour service hotline is available for users.

　　5. A system of assigning dedicated personnel to serve users is established. After each service, a user service form must be filled out and confirmed by the user's signature.

　　6. During the pre-sales, in-sales, and after-sales service processes, relevant files will be bound and preserved.
