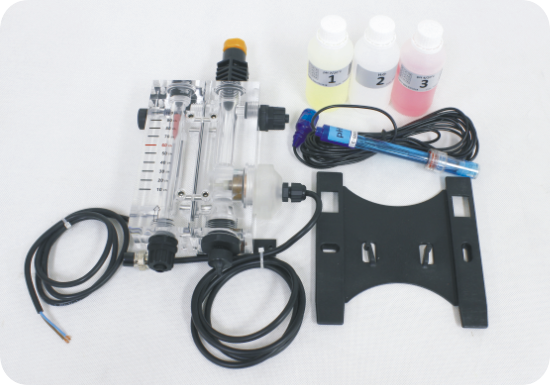

Blue Dolphin - Multifunctional Water Quality Monitor for Residual Chlorine

Made in Italy with imported, high-quality electronic components and superior casing materials, this is a smart swimming pool water quality monitoring system designed to control the residual chlorine content, pH value, and temperature of residential and commercial swimming pools and spas.

Features:
pH Measurement -- Range: 0~14; Resolution: ±0.01
CL Measurement -- Range: 0-200PPM; Resolution: ±0.01; Accuracy: 1%
Temperature Measurement -- PT100; Range: 0-100°C; Resolution: 1%; Accuracy: 1%
Power Input -- 100~240V, 50~60Hz
Signal Input -- External trigger (flow meter) input (15~30Vac/Vdc)
Output -- 0/4~20mA, four chemical pump relay outputs (10A, 230V)
Power -- 15W
Dimensions -- 300(H) × 290(W) × 143(D)
Installation -- Wall-mounted
Operating Environment -- Temperature: 0~40℃; Relative Humidity: 0~95% (non-condensing)
Weight -- 2.45kg
Casing Material -- ABS
Protection Level -- IP65
